Classic series


M.2 NVMe / SATA Professional Duplicator

NVMe CyCLONE utilizes PCIe technology to achieve high-speed M.2 SSD copying and erasing capabilities, while also offering the functionality of daisy- chain and connecting external printer. It is designed to meet the demands of the next generation of M.2 SSD professional duplicators.

The difference between NVMe CyCLONE and NVMe CyCLONE Pro

M.2 Slot
Quality Check
Erase Modes

Choose the most efficient copy mode to fit your needs

5 copy modes for SSD/HDD are provided, including Whole Media, System and Files, All Partitions, Percentage, and Non-zero copy. User can choose the most suitable copy mode according to different needs.
Copy Area
clone NVMe with System and Files Copy mode

Saving TimeSystem and Files Copy (Intelligent Copy)

Only copies data area, supports Windows (FAT16/32/64/NTFS/LVM/XFS), Linux (ext2/ext3/ext4), and Mac (HFS/HFS+/HFSX). Time-saving mode.
Partition 1 has a capacity of 400GB with 100GB of data in it. Only 100GB of data will be copied while unused space area will not be copied, saving time.

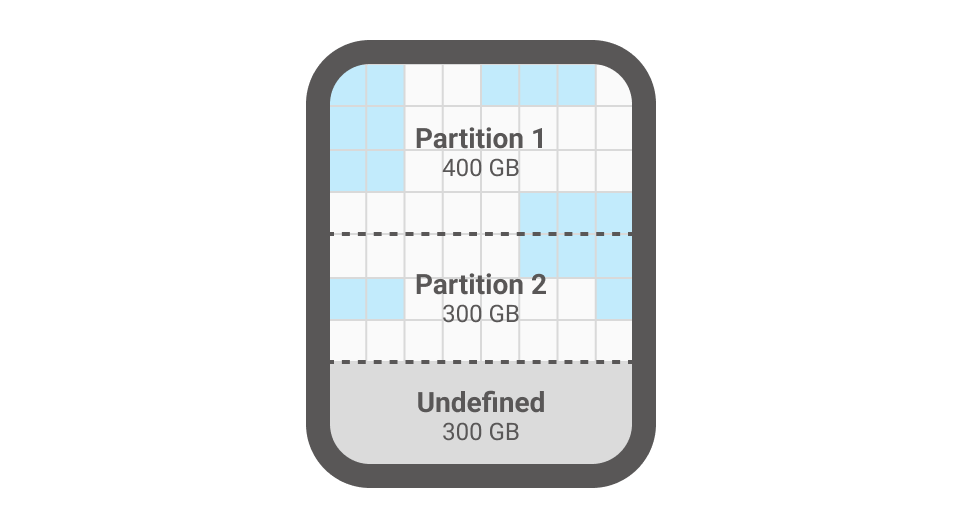

clone NVMe with Non-zero Area mode

Saving TimeNon-zero Area

When the machine is unable to recognize the file system, it performs a copy operation that excludes zero-data area. This can reduce copying time and improve efficiency.
clone NVMe with Whole Media Copy mode

Whole Media Copy

Copies entire storage device, from initial sector to end sector, sector by sector. Support all file system.
clone NVMe with Percentage Copy mode

Percentage Copy

Copies selected percentage area. Percentage Copy can be used by setting up the starting and ending point of data to copy.
clone NVMe with All Partition Copy mode

All Partition Copy

Copies partitioned area only. It will not copy the area that have not been partitioned. Support all file system.
A 1TB storege has two partitions as Partition 1 with 400GB and Partition 2 with 300GB. While All Partition Copy mode is selected, these two partitions will be copied and the undefined area will not be copied.

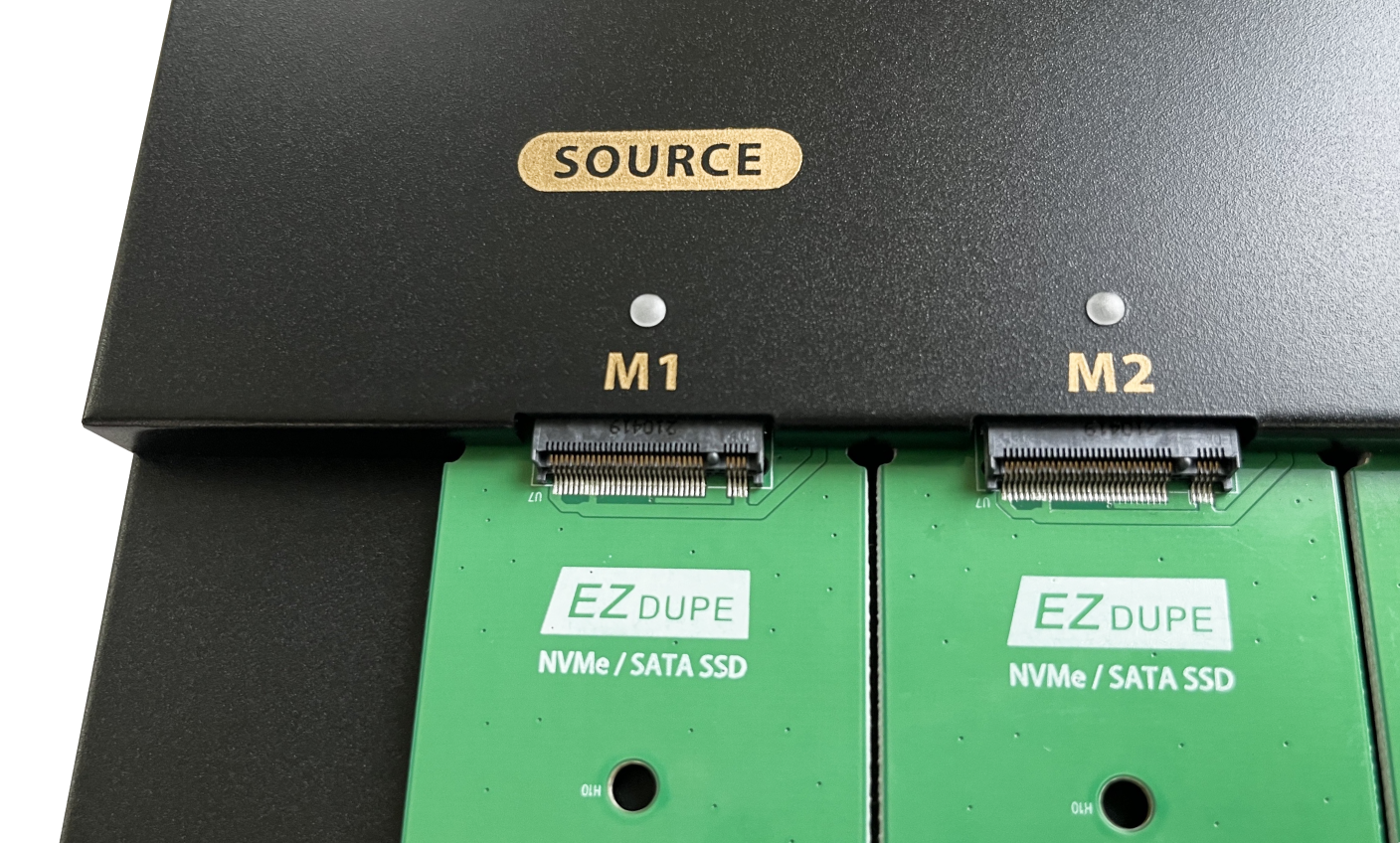

NVMe duplicator device protection

Device Protection

The ports are powered off during standby mode and powered on when working to prevent short-circuit when the SSD is inserted.

Enable Erase source port function, increasing the efficiency up to 25% for erase and test.

The new Erase Source Port feature allows performing erase operations on the source slot. It increases the total number of executable ports and improving efficiency.

Enhanced versatility

Daisy-chain can easily mass copy to allow multiple hard drives with only a single source. External printer supports the printing of work records.

Seven Data Erase Modes Keep from the Leakage of Confidential Data

When manufacturers/maintenance and repair shops need to reuse hard drives, this is an ideal function to erase data based on different level of secrecy.

Other Features

Automatically alerts user to remove any slow hard drives to prevent them from slowing down the overall copy speed.

The machine supports LVM、XFS format.

Detailed work records for effective production status tracking. It provides customer production reports.

Technical Specification

Operation Type Standalone(No PC required)
Target 300MB/s
4(Model No. DM-HE3-5M04PC)
9(Model No. DM-HE3-5M09PC)
4(Model No. DM-HE6-5M04PC)
9(Model No. DM-HE6-5M09PC)
Copy Speed 300MB/s, 600MB/s
Copy Mode Synchronous
Copy Area Whole Media | System and Files (Intelligent Copy) |
All Partition Copy | Percentage Copy | Non-Zero
Supported Media M.2 NVMe & M.2 SATA SSD
Supported File Systems for Intelligent Copy Windows: FAT16/32, exFAT, NTFS
Linux: ext2/3/4, LVM, XFS
※Other formats can be copied using the "Whole media" function.
System Memory 256MB
Power Required 100~240V AC
Size 1 to 4: 27.5*20*14cm
1 to 9: 46*20*16cm
Net Weight 1 to 4: 3.3KG
1 to 9: 5.35 KG
Temperature Range Operating:41°F ~ 113°F (5°C ~ 45°C)
Storage:-4°F ~ 185°F (-20°C ~ 85°C)
Humidity Range Operating:20%~80%
Certification FCC, CE, RoHS
